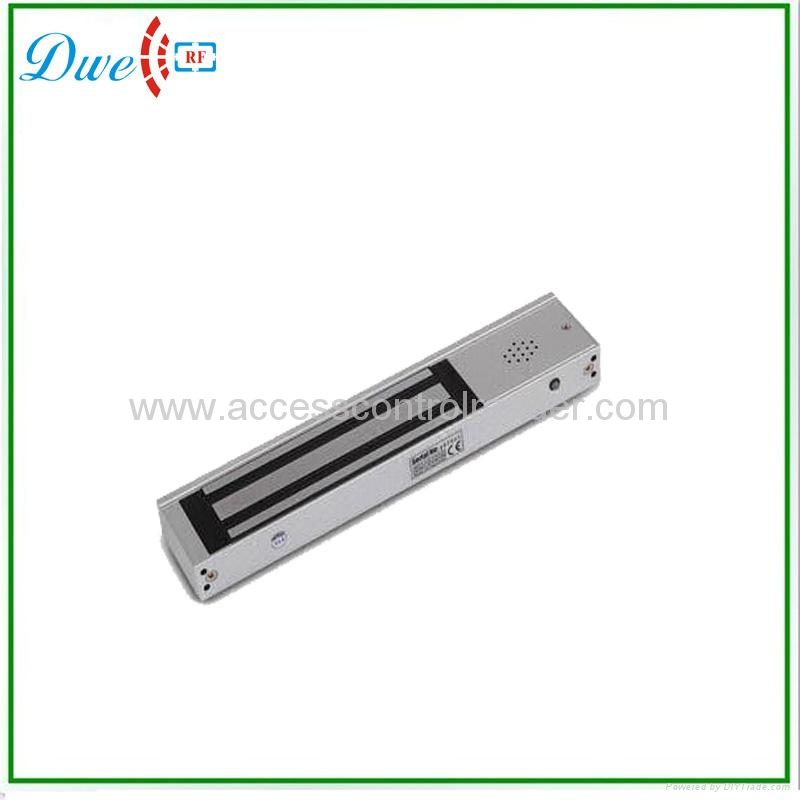

Magnetic Lock 600lbs 280kg DW-280

  • Magnetic Lock 600lbs 280kg DW-280
  • Magnetic Lock 600lbs 280kg DW-280
Model No.︰DW-280
Brand Name︰Dwell
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 35 Related Items
Prev7891011Next

Product Description

Lock Size: 250Lx48.5Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force:
280kg(600Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/500mA     24V/250mA
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp:
≤+20℃
Operating Temp: 10~+55℃(14-131F)

Suitable Humidity:  0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc

Weight: 2kg
Standard Packing: 12pcs

Collinear Load Test 280kg,600pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure

Increase the holding Force,Dual Insulative Housing

Payment Terms︰TT/Western Union/Paypal/Escrow/Cash
