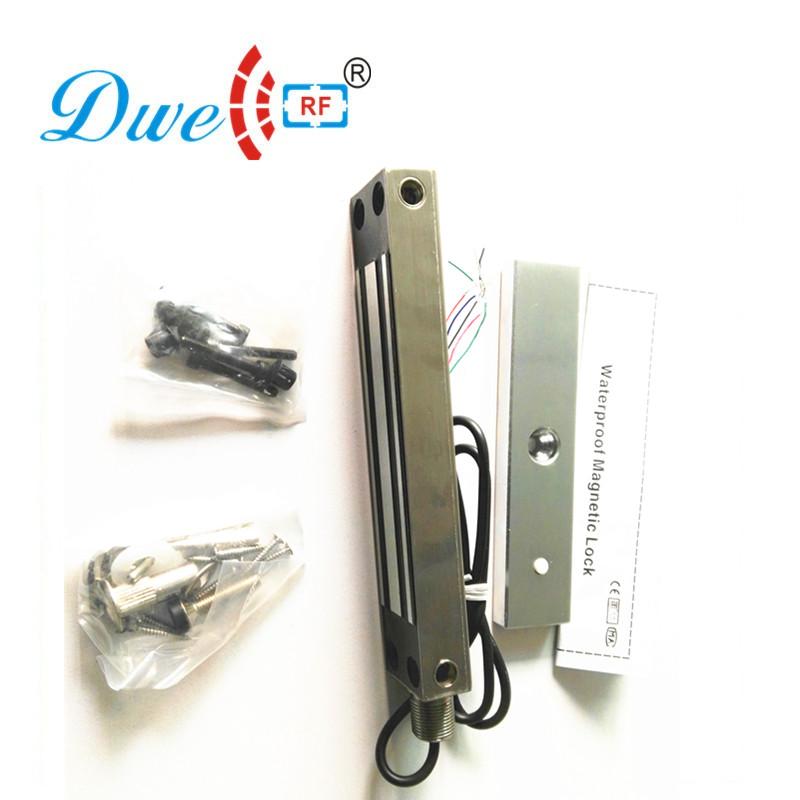

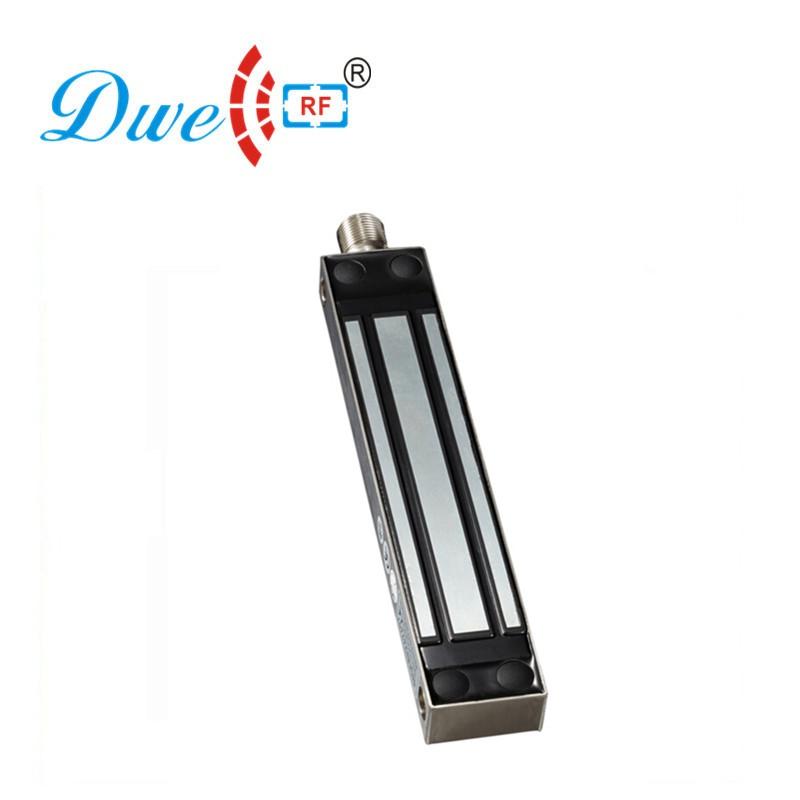

Waterproof Magnetic door lock 280KG 600lbs
|
Product Parameter
|
Parameter Description
|
|
Size
|
220Lx42Wx25.5H(mm)
|
|
Holding Force
|
280kg(600Lbs)
|
|
Input Voltage
|
12 or 24VDC
|
|
Current
|
12V/500mA or 24V/250mA
|
|
Suitable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
Signal Output
|
Door Signal NO/COM
|
|
Waterproof Level
|
IP-68
|
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
Weight
|
2.1kg
|
Description
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
100 percent waterproof,All the Parts Pressurize in resin.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
