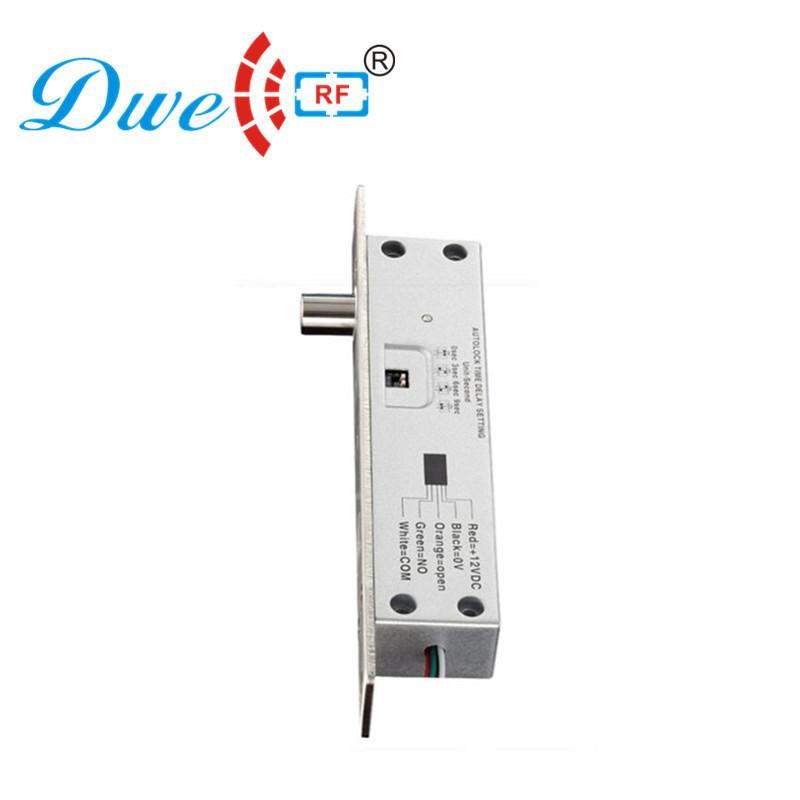

Fail Secure : Unlocked when energized
Face Plate: 192Lx25WX37H(mm)
Strike: 100Lx25Wx3H(mm)
Bolt: 17mmDIA,stainless steel 13mm throw
Voltage: DC12V(DC24V)
Start Current: 900mA
Standby Current: 120mA
Solid Bolt: polishing housing, 1000Kg Holding Force
Suitable For: Wooden Door,Glass Door,Metal Door,PVC Door
Signal Output: Door Status Output,NO/NC/COM
Surface Temp: Low Temperature
Induction Distance: 8mm
Operating temp: -10~+55℃（14-131F）
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Face place material:Stainless Steel
Weight: 0.676kg
Standard Packing: 24pcs.
