omnidirectional active reader 240G4

  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
  • omnidirectional active reader 240G4
Model No.︰240G4
Brand Name︰Dwell
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 3 Related Items
Prev123Next

Product Description

Technology specifications

Frequency

2.4GHz--2.5GHz ISM

Antenna

Connect 1 antenna through SMA

RF Power range

-18.0dBm-0.0dBm( adjusted by 32 grade )

Receiving sensitivity

-90.0dBm

Operating mode

FHSS or fixed frequency(set by software)

Modulation

GFSK

Reading range

0~50m (Standard matched antenna)

0~100m (directional)

0~200m(directional)

RSSI active reader can be adjusted less than 10m

Anti-collision

Up to 500 tags read simultaneously

Buffer capacity

2000 tags data

Communication speed

250kbps,,1Mbps,2Mbps(adjustable)

Communication interface

RS-232, RS-485,USB, Wiegand26/34/42/50, Ethernet

Input and output

1 trigger input, 2 relay output

Optional function

2 relay, CAN, RSSI,ID-Match, Offline and Time

Current/Voltage

AC input: 100~240V, 50/60Hz 1.2A;

DC output: 5V/1A

Product size

134mm*99mm*34mm

Packing size

284mm*275mm*85mm

Gross weight

0.79 kg

Net weight

0.25kg

Working temperature

-20℃~+70℃ (-4οF~+158οF)

Storage temperature

-40℃~+85℃ (-40οF~185οF)

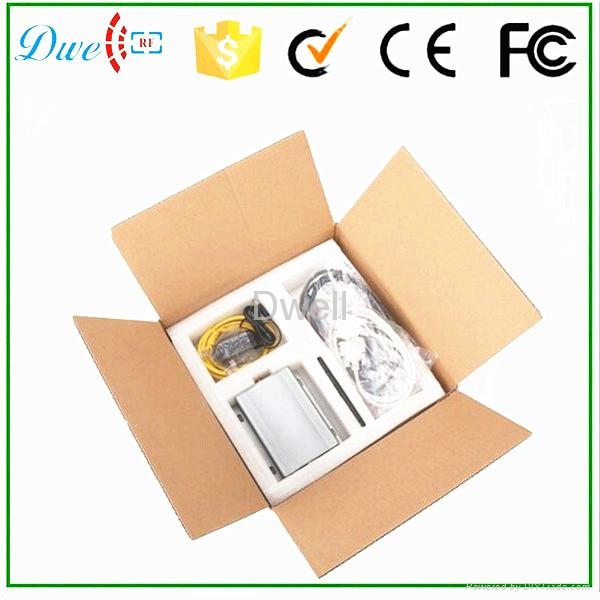

Accessories

Standard matched antenna, DC5V/1A adapter,  power cable, RS-232 cable, USB cable, Ethernet cable

Working status indication

Buzzer, LED indicator light

Payment Terms︰TT/Western union
Product Image
